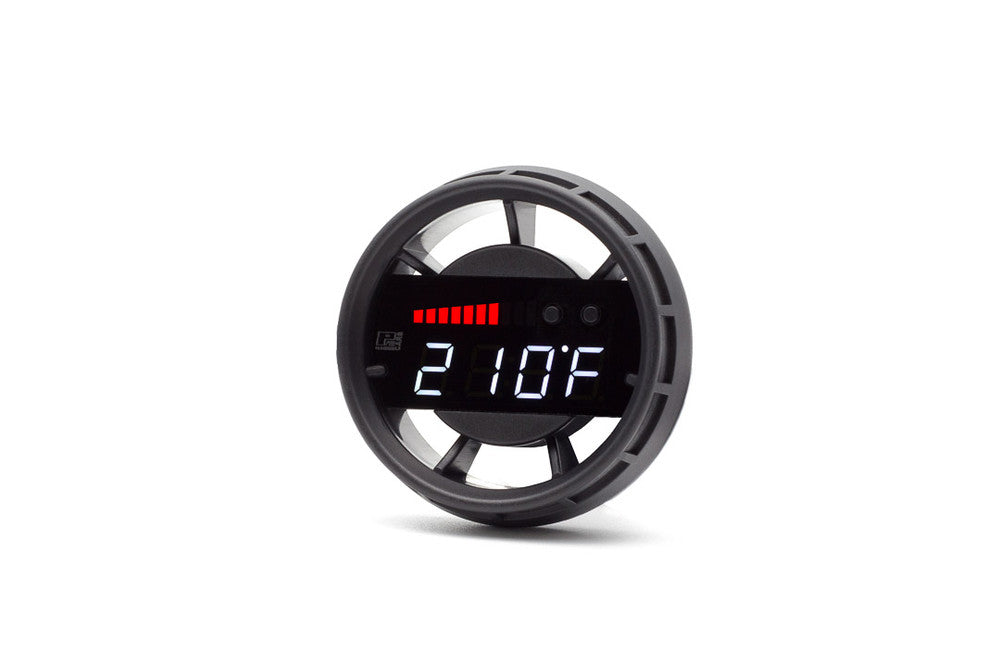

P3 V3 OBD2 -Audi 8V Gauge (2012+)

*Compatible with both 8V and 8V facelift vehicles

P3 V3 Gauge Features

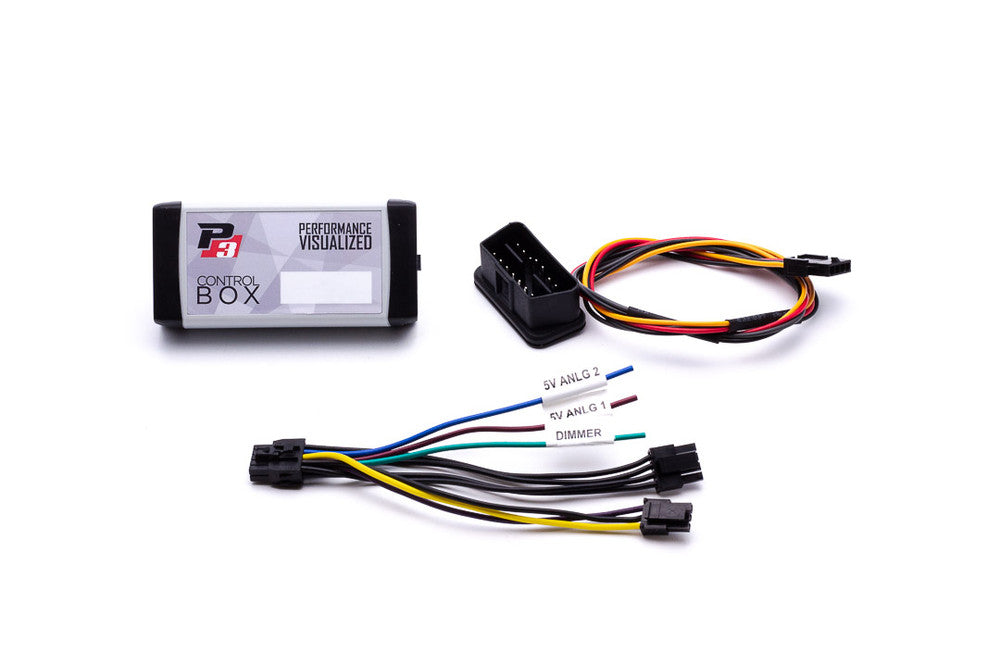

• Plug and Play Install - plugs directly into your OBD2 port (want to keep your OBD2 port open? hard-wire harness kit also available)

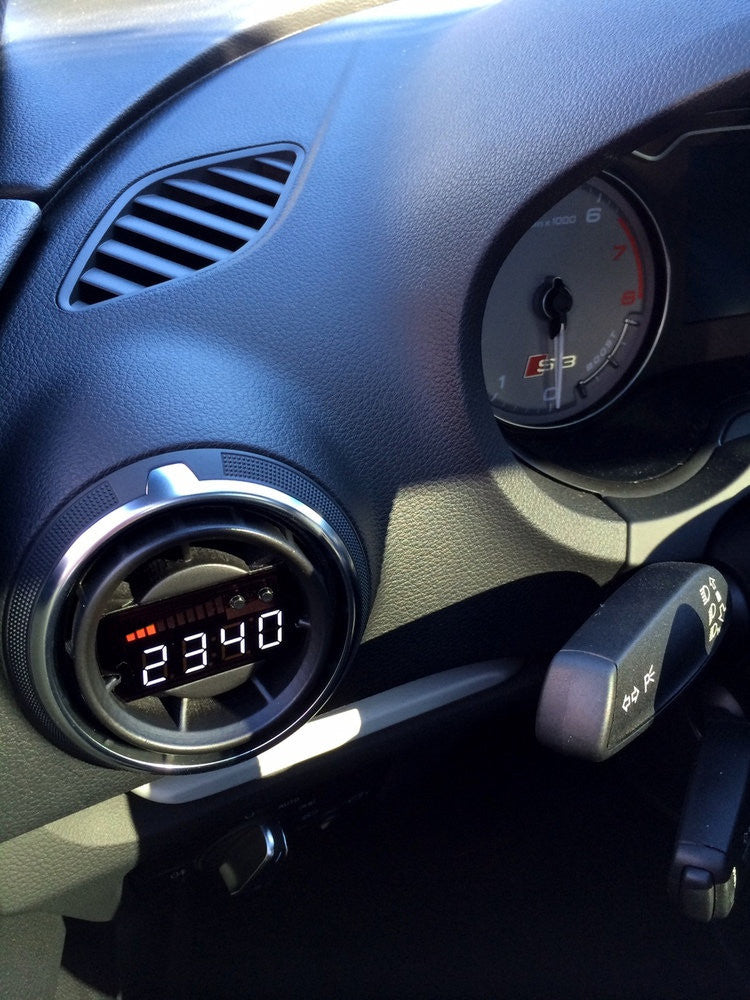

• OEM Integration - installs in your vent for a sleek install while retaining air flow
• Versatility - read boost from multiple OEM sensors through OBD2 port or using optional P3 analog boost sensor
• Code Reading/Clearing - read and clear diagnostic trouble codes (DTCs) on the fly

P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)

• Boost (through OBD2 port using OEM sensors or with P3 analog boost sensor)
• Coolant temperature
• Air/Fuel ratio (can be read in AFR or Lambda)
• Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
• Intake air temperature
• Throttle angle
• Ignition timing
• Engine RPM
• Exhaust gas temperature
• Battery voltage
• Programmable shift light
• Analog input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
• Analog input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
• Acceleration timers (0-60mph/0-100mph/60-130mph)
• Braking timers (60-0mph/100-0mph)

Optional Add-Ons

• P3 Analog Boost sensor - plugs directly into gauge harness, no wiring required)
• Boost tubing kit - Approx. 5' of 5/32" O.D. flexible plastic boost tubing with vacuum "T" and 3 sections of 5/32" I.D. vaccum hose. Includes 3 zip ties
• P3 ESVA (Ethanol Sensor Voltage Adaptor) allows your gauge to read ethanol content and fuel temperature directly from the common Continental/GM flex fuel sensor. *Ethanol sensor NOT included
• Trim Removal Kit - this tool kit will help you remove your vent and interior trim while minimizing the chance of scratching or damaging your trim
• OBD2 Splitter - attach multiple devices to your OBD2 port. *some devices will not function while another device is attached to the OBD2 port
